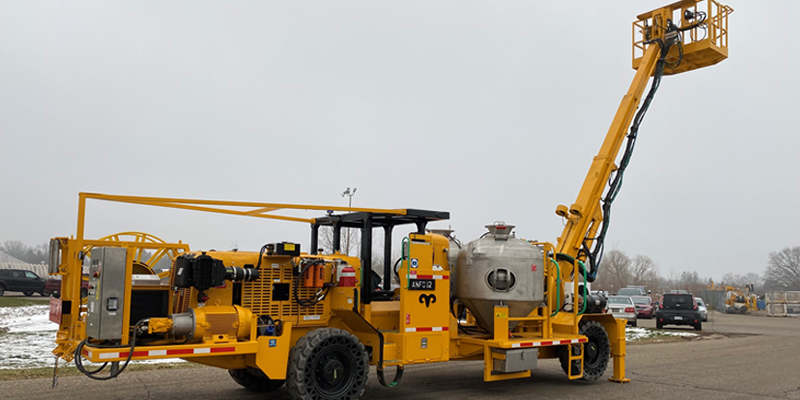

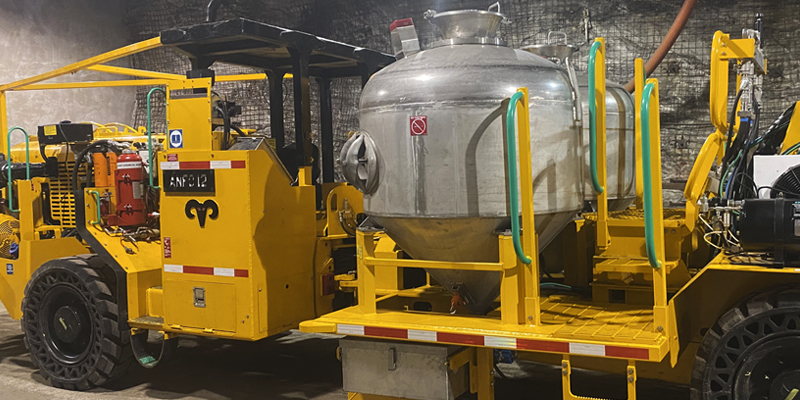

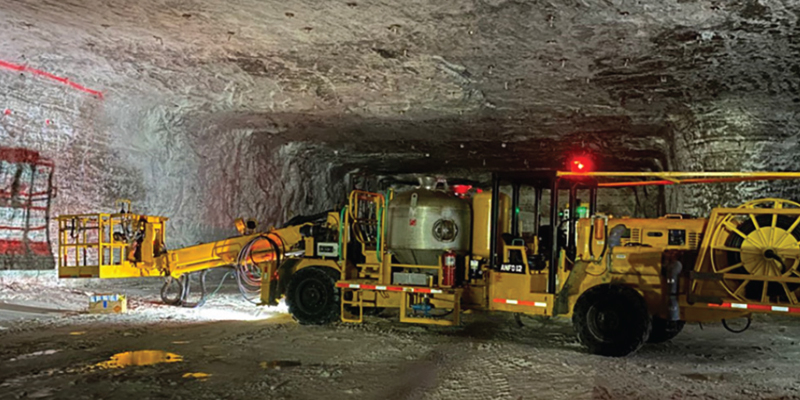

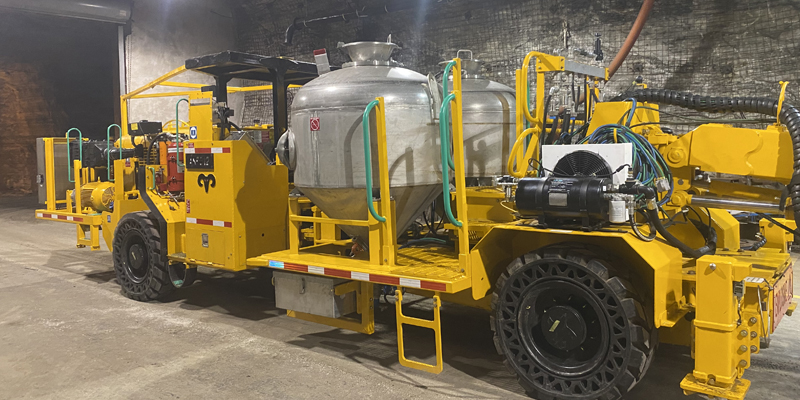

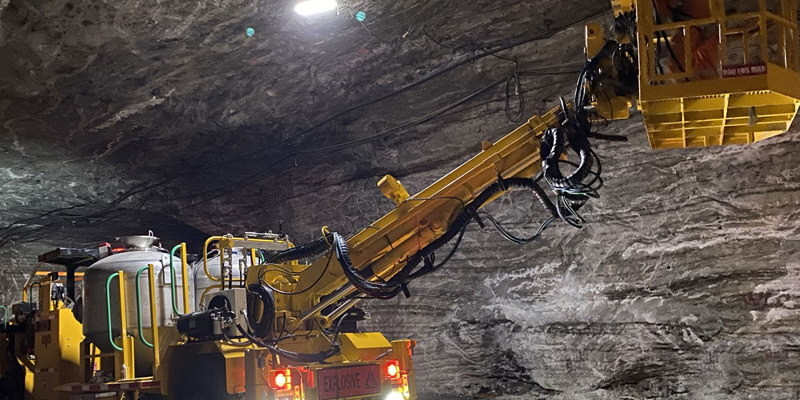

M40 Anfo Loader M40 Anfo Loader

Mobile Minejack® Anfo Loader Carrier Utility Vehicles

  • Our M40 ANFO Loader is the most versatile and unique machine on the market
  • It has the largest boom reach in the industry, capable of handling 40’ x 40’ face in a single-setup
  • It has one of the if not the largest ANFO holding capacity in the market at 2x 2,500 lbs.
  • Hydraulics can be run on electrical mine-power.

STANDARD CARRIER FEATURES
• 500 lbs. Single Anfo Pot (125 psi pressure rating) Configuration with Single Anfo Loading System
• 5/8" Antistatic Plastic Hose
• Quick Attachment for Loader
• Stainless Steel Grounding Cable
• Skid Equipped with 4-Way Fork Slots

Technical Specifications

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Four-speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

 Axles
• Dana 123 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37o articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Hydraulic System
• 99 L (21.7 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 6 nozzle fire suppression package (LVS)
• Side facing operator seat
• Two (2) 406 mm (16 in) rear jacks
• Timberland MB150 man basket
• 1,000 lbs. single anfo tank

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• MB210 man basket- extended boom coverage
• Emergency steering
• Remote engine start/stop
• Customizable anfo tank size (up to 5000lbs)
• Dual anfo tanks
• Hydraulic power pack
• Remote control operation with creep speed control
• Boom cradle
• 762 mm (30 in) front or rear jacks
• 991 mm (39 in) front or rear jacks
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier III engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Mud flap
• Hose reel
• 85 CFM compressor
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 solid tires
• 10:00 x 20 pneumatic tires
• 10:00 x 20 flex tires

Carrier Configuration
• One (1) operator and one (1) passenger seat
• Single person manbasket with 272 kg (600 lbs) capacity
